AccuFeed Screw Feeders offer significantly reduced cost and off-the-shelf delivery in a design that delivers unsurpassed feed accuracy and dependability with rates up to 600 cubic feet per hour. These high technology feeders use composite materials of construction in molded components for extreme strength and durability. Contact parts are polyethylene and stainless steel for excellent chemical resistance. Materials meet FDA requirements, and the design is USDA approved.
| SPECIFICATIONS |

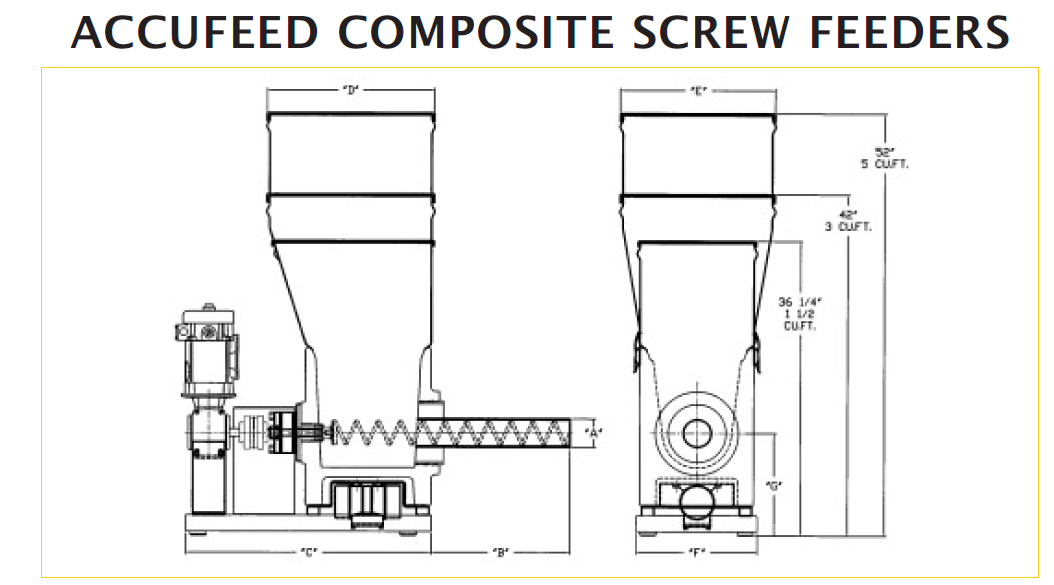

Click to View Larger
|
|
Standard AccuFeed Specifications: |
| Sizes: |
(Inches): 3/4, 1, 11/2, 2, 3, 4, 6. |
| Sizes: (mm): |
19.05, 25.4, 38.1, 50.8, 76.2, 101.6, 152.4 |
| Contact Materials: |
A) Polyethylene B) 304 Stainless Steel Screw & Tube External Construction: A) Carbon Steel Optional External Construction: A) 304 Stainless Steel B) 304L Stainless Steel C) 316 Stainless Steel D) 316L Stainless Steel |
|
Standard External Coatings: |
A) Enamel |
| Optional External Coatings: |
A) Epoxy Paints B) Corrosion-resistant Paints |
| Standard Drive: | DC drive with 10:1 ratio, 115-230V/1Ph/50Hz |
| Optional Drive: |
A) AC Inverter Drive with 10: ration Standard Drive Enclosure: Totally enclosed fan cooled (TEFC) |
| Optional Enclosures for above drives: | A) Explosion Proof, Class I, Group D B) Explosion Proof, Class II, Groups F & G C) Chemical Duty D) Totally enclosed non-vented (TENV) |
| Sanitary Applications: |
| Standard Sanitary Applications: |
A) Food Grade Gaskets and seals B) Teflon seals Optional Sanitary Applications A) Gaurds, covers held with thumb screw and wing nuts B) Special TENV motors
|
| |
|
| SCHEMATICS Find the schematic you wish to download and choose which format you prefer. PDF or DWG. |
| AccuFeed Low-Rate Screw Feeder |
| AF-C-17687 |
1/2"-2" AccuFeed w/hopper |
PDF |
DWG |
| AF-C-17687A |
1/2"-2" AccuFeed w/trough cover, no hopper |
PDF |
DWG |
| AF-C-18068 |
3"-6" AccuFeed with hopper and cover |
PDF |
DWG |
| AF-C-18074 |
3"-6" AccuFeed with trough cover, no hopper |
PDF |
DWG |
| |
|
